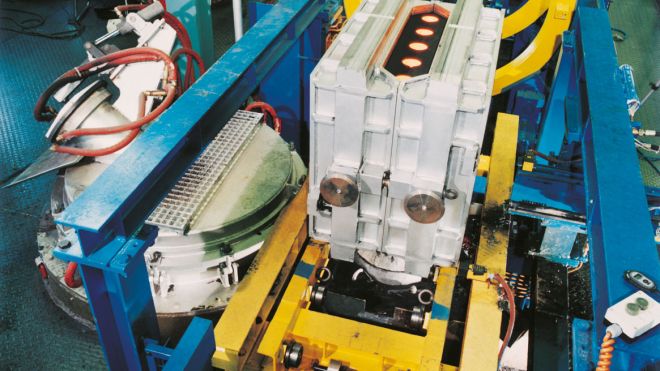

For aluminium and iron/steel foundries using sand moulding lines, we supply channel and crucible furnaces for low-pressure mould filling. This furnace technology has been specifically adapted to the requirements of high-capacity flask moulding lines.

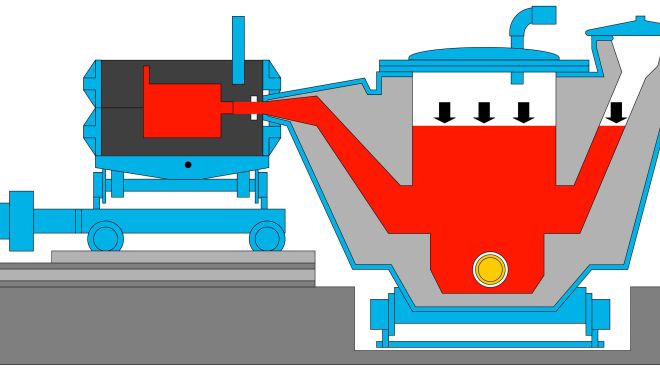

The furnaces hold the casting alloy exactly at the desired temperature and release the metal under consistent, precisely defined conditions, filling the sand moulds directly from below in a controlled, low-turbulence way.
Benefits at a glance:
- Laminar mould filling
- High dosing accuracy through pressure-controlled metering
- Variable filling characteristics
- Minimal sprue length
- Minimal oxide and slag inclusions
- High-precision temperature control and low energy requirements

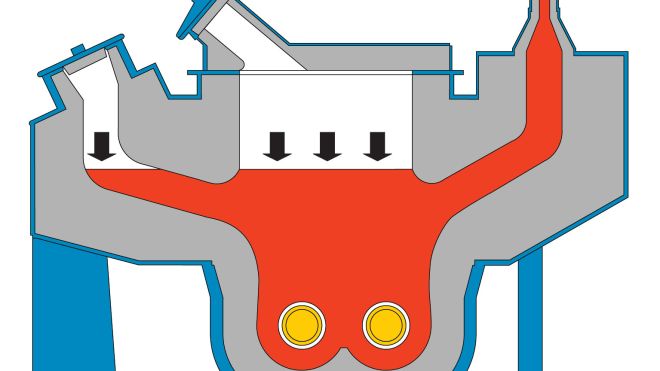

The casting furnace consists of an inlet siphon, a pressurized chamber with flanged-on channel- or crucible-type inductor and an out-flow for mould filling.

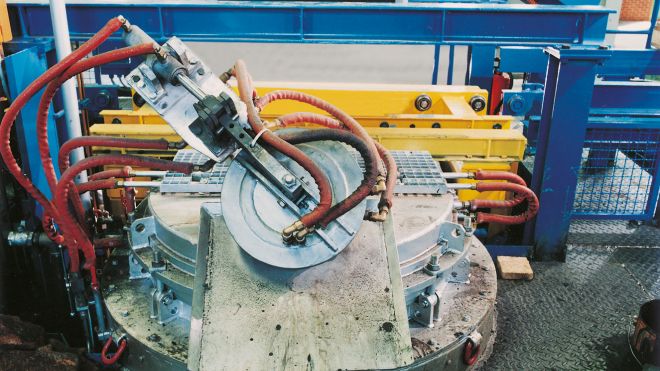

In order to be able to optimally position the furnace relative to the mould and empty it without loss of material, the furnace is movable and hydraulically tiltable.
| Typical use | NF-metals, iron and steel casting |
| Pouring vessel design | With channel- or crucible-type inductor |
| Furnace type | Movable and hydraulically tiltable |
| Tapping mode | Batch-type via nozzle |
| Heating power | From 60 up to 500 kW |
| Capacity | From 1 up to 5 t |
